Roger Technology Motor Replacement with gate service in Frampton upon Severn, Gloucestershire.

  • info7088665
  • Aug 18
  • 2 min read

Gate Men were called in by a local customer in Frampton upon Severn, following issues with there electric driveway gates. As Roger Technology gate automation specialists, we were called to help diagnose the issue with the system, and carry out parts repairs following another gate company had removed a motor and left the customer without a working system.


Installation of new BR21/351 Roger Motor to the right side motor with new electric connections in a junction box.

Installation of new BR21/351 Roger Motor by Gate Men in Frampton Upon Severn, Gloucestershire.
Installation of new BR21/351 Roger Motor by Gate Men in Frampton Upon Severn, Gloucestershire.

Following completion of the installation of a new gate motor, the system hasn't been well managed or serviced correctly by previous gate companies, so we also offered the customer a full gate service on their other motor and gate hinges.


Typically, we see a lot of underground gate motors not serviced correctly, motor boxes filled with debris, and none of the hinge or pivot points lubricated causing extra wear on the system.


We start of with removing the motor box lid, to see what condition the motor is in, here we can see the motor box is filled with loose debris due to the drainage being blocked, and nothing has been lubricated. Gate Men have removed the motor from the underground box.


Roger Motor covered with debris in the electric underground box.
Roger Motor covered with debris in the electric underground box.

Removal of the electric gate motor so Gatemen can clean out the box and clear the drainage.
Removal of the electric gate motor so Gatemen can clean out the box and clear the drainage.
Refit the Roger motor into the underground box, and ensure all the fixing points and cleaned, lubricated and tightened correctly to stop the motor moving in the casing.
Refit the Roger motor into the underground box, and ensure all the fixing points and cleaned, lubricated and tightened correctly to stop the motor moving in the casing.

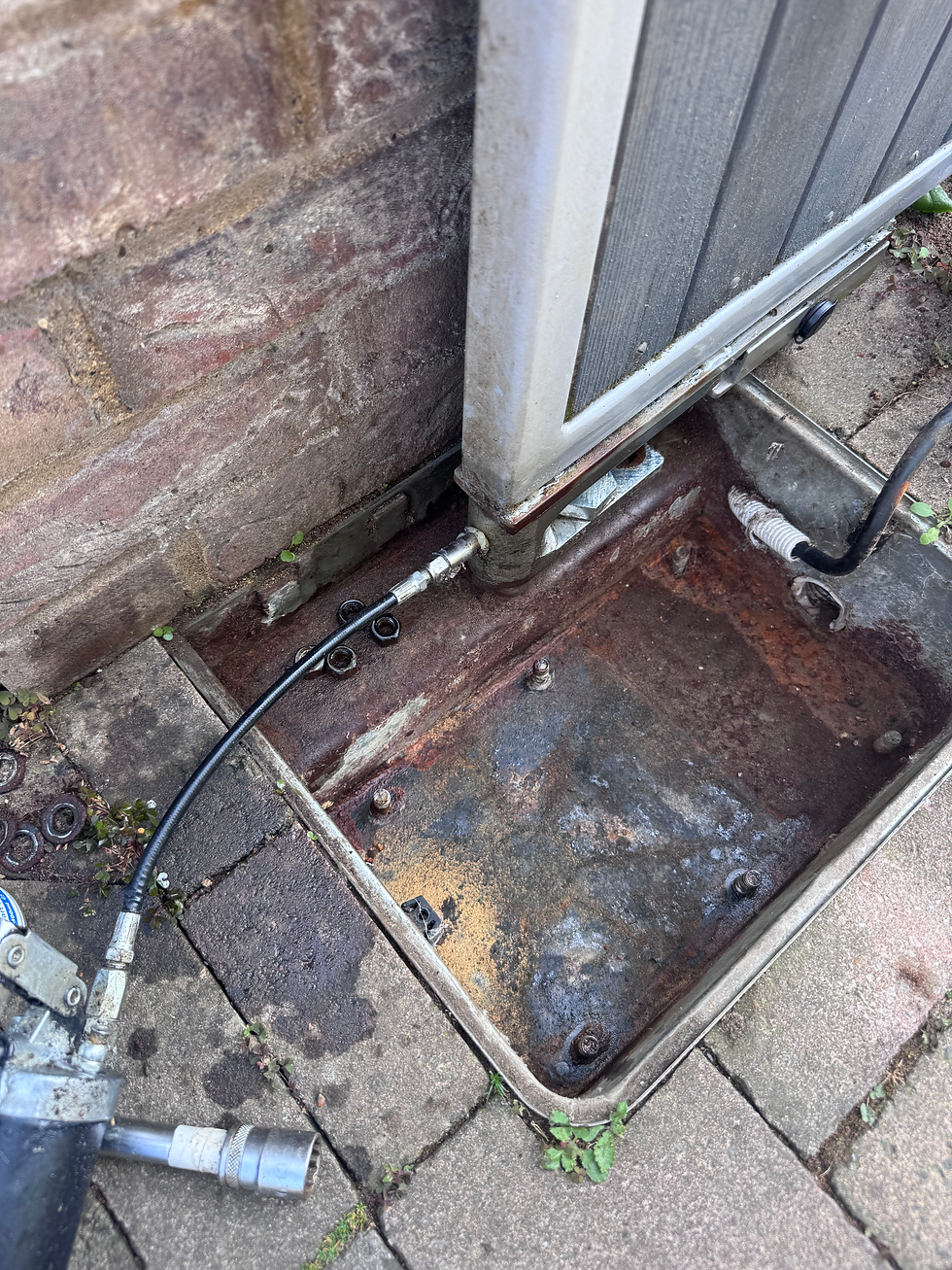

Lubricate all the pivot points on the link arms for the motor and the underground gate shoe.
Lubricate all the pivot points on the link arms for the motor and the underground gate shoe.
Ensure the bottom bearing pivots are lubricated with the correct grease.
Ensure the bottom bearing pivots are lubricated with the correct grease.

As you can see, the gate motors are now fully adjusted, cleaned out and lubricated. As standard at Gate Men, we complete a full gate service on your system, and it’s not just a tick box exercise to get paid. Have peace of mind that our services are carried out by our fully trained Gate Engineers, with Gate Safe accreditation.


Gatemen cover gate repairs and gate maintenance throughout Gloucestershire & Bristol.

All major areas covered including Stroud, Gloucester, Cheltenham, Bristol, Cirencester, Swindon


Get in touch with our local gate team


01452 447002
